Nuclear Reactors

icon-atom-char

There Are Two Types of Reactors in the United States

The Pressurized Water Reactor (PWR) The Pressurized Water Reactor (PWR)
(Click for Larger Version)
View an Animated Image of a Pressurized Reactor

Pressurized Water Reactors are known as "PWRs." They keep water under pressure so that it heats but does not boil. Water from the reactor and the water that is turned into steam are in separate pipes and never mix.

And the Boiling Water Reactor (BWR) And the Boiling Water Reactor (BWR)
(Click for Larger Version)
View an Animated Image of a Boiling Water Reactor

Boiling Water Reactors are known as "BWRs." In BWRs, the water heated by fission actually boils and turns into steam to turn the generator. In both types of plants, the steam is turned back into water and can be used again in the process.

Radioactivity must be carefully managed because it can be dangerous if not handled properly. It can damage human cells or cause cancer over time. Since the fission process creates radioactivity, all nuclear power plants have many safety systems that protect workers, the public and the environment. For example, systems allow the fission process to be stopped and the reactor to be shut down quickly. Other systems cool the reactor and carry heat away from it. Barriers keep the radioactivity from escaping into the environment.

In reactors, radioactive material is contained inside small ceramic pellets about the size of an adult's finger. They are placed in long metal rods inside a reactor vessel, which is enclosed in a concrete and steel containment building. These buildings have walls three to six feet thick!

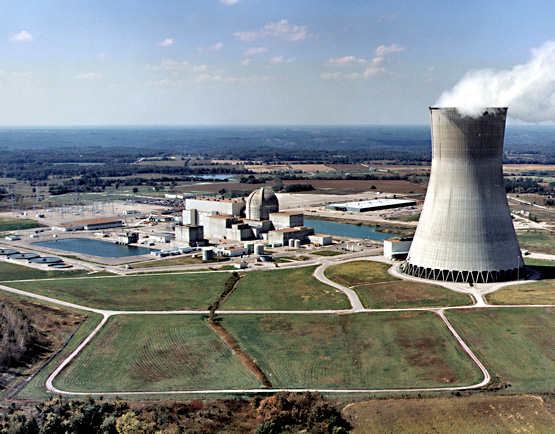

Nuclear Reactor
