Information Notice No. 94-71: Degradation of Scram Solenoid Pilot Valve Pressure and Exhaust Diaphragms

                                 UNITED STATES
                         NUCLEAR REGULATORY COMMISSION
                     OFFICE OF NUCLEAR REACTOR REGULATION
                            WASHINGTON, D.C.  20555

								October 4, 1994



NRC INFORMATION NOTICE 94-71: DEGRADATION OF SCRAM SOLENOID PILOT VALVE PRESSURE AND EXHAUST DIAPHRAGMS


  Addressees
All holders of operating licenses or construction permits for boiling water
  reactors (BWRs).
Purpose
The U.S. Nuclear Regulatory Commission (NRC) is issuing this information notice
  to alert addressees to the potential failure of scram solenoid pilot valve diaphragms
  to function properly to the end of their recommended service life. It is expected
  that recipients will review the information for applicability to their facilities
  and consider actions, as appropriate, to avoid similar problems. However, suggestions
  contained in this information notice are not NRC requirements; therefore, no
  specific action or written response is required.
Description of Circumstances
On March 26, 1994, a control rod failed to scram at Washington Nuclear Plant
  (WNP-2) during the routine 120-day test of 10 percent of the control rods. Testing
  was expanded to include all control rods and 5 more rods were identified as
  having slower than normal notch-45 scram times but were within technical specification
  limits.
On April 17, 1994, the licensee for Pilgrim Station discovered during routine
  scram time testing that a control rod exceeded the 7-second full insertion time
  limit. Several other rods, while within technical specification limits, had
  notably slower scram times than their previous baseline test data. Three rods
  were slow enough to cause their 2 by 2 arrays to exceed the technical specification
  limit. The licensee performed additional testing and, on April 22, 1994, shut
  down the plant to replace the pilot valve diaphragms for approximately 20 control
  rods which had exhibited slow but acceptable scram times. The licensee found
  that the pilot valve diaphragms for five of these control rods were severely
  hardened.
Discussion
Automatic Switch Company (ASCO) model HVA-90-405 (referred to as the "dual"
  type valve) is commonly used as the scram solenoid pilot valve in BWR-2, BWR-3,
  BWR-4 and BWR-5 type plants. It is a 3-way valve and directs supply air to pressurize
  the scram valves or exhausts air to depressurize the scram valves and cause
  a reactor scram (Figure 1). The pilot valve has one solenoid and, when the solenoid
  changes state, the exhaust and pressure diaphragms in each pilot valve flex
  to allow air to pass through internal pathways or block air from passing. In
  this way, the air operated scram valves are opened to cause a reactor scram
  and closed to reset the scram.
Two dual type valves are connected in series and installed at the top of each
  control rod hydraulic control unit. The upper pilot valve is designated as V-118
  and the lower pilot valve is V-117. The location of the V-118 pilot valve, just
  above V-117, results in slightly higher temperatures for the V-118 valve because
  it receives some of the heat generated by the V-117 solenoid coil, as well as
  its own self-generated heat. The V-118 exhaust diaphragm is under the most stress
  when the system is in the normally energized state (no scram condition) because
  there is system pressure on the upstream side and atmospheric pressure on the
  downstream side. The heat and stress combine to cause the V-118 exhaust diaphragm
  to generally age faster than the other three diaphragms.
The problems at both WNP-2 and Pilgrim were caused by the degradation of the
  Buna-N rubber diaphragms in the scram solenoid pilot valves. The failure of
  the control rod to insert at WNP-2 was due to a 90 circumferential crack in
  the V-118 exhaust diaphragm and a hardened V-118 pressure diaphragm that allowed
  an air leakage path that prevented the exhaust diaphragm from lifting off its
  seat when the pilot valve coil was deenergized. The slow control rod at Pilgrim
  was caused by a 60 circumferential crack in the exhaust diaphragm that prevented
  full flow of air out of the exhaust port.
The deterioration of the diaphragms at WNP-2 and Pilgrim was much more severe
  than what has normally been observed at the end of service life for these diaphragms.
  This may indicate that the life expectancy of the diaphragms is less than the
  7-year combined shelf and service life and the 3 to 4-year service life recommended
  by GENE. Although some diaphragms exhibited overall hardening, the diaphragms
  at both plants were found to be most severely hardened in areas that are normally
  in contact with system air (as opposed to areas that are in contact with metal
  valve surfaces). Any torsional or twisting force applied to the removed degraded
  diaphragms caused them to crack. According to the NSSS supplier, General Electric
  Nuclear Energy (GENE), a normal diaphragm at the end of service life tends to
  have only a slight loss of flexibility and is somewhat hardened all over, with
  no particular area harder than another.
The diaphragms installed at WNP-2 during the 1990 refueling outage were found
  to have assembly dates of 1983, 1987 and 1989. Material records from Pilgrim
  show that all of its scram solenoid pilot valves were rebuilt in June 1991 with
  kits assembled in either 1987 or 1990. For both plants, the diaphragms that
  exhibited severe degradation were from the 1989-1990 replacement kits. Analysis
  by several independent materials laboratories has indicated that the 1989-1990
  diaphragms contained somewhat lower levels of nitrile along with indications
  of different concentrations of plasticizer and variations in the curing agents
  compared to diaphragms with an earlier assembly date. However, prior to 1993,
  there is no direct correlation between the actual cure date of the Buna-N components
  and the assembly date..
In addition to the above, residues were found on some of the degraded diaphragms
  where none would be expected, indicating that a chemical reaction with some
  contaminant could have contributed to the deterioration of the diaphragms. The
  origin of the contaminant is unknown at this time. The licensees involved stated
  that no chemical agent is used to clean the valve bodies or the Buna-N rubber
  components during the refurbishment process. The manufacturer (ASCO) indicated
  that no chemical cleaning agents are used during the assembly process and postulated
  that a contaminant may be introduced by the licensee air supply system.
In response to recent GENE communications, several licensees have submitted
  diaphragm samples to GENE for material analysis. Degradation has been observed
  in a small number of diaphragms from Dresden Station, Quad Cities Station, and
  Cooper Nuclear Station. However, other diaphragms from these sites, as well
  as samples from Limerick Nuclear Generating Station and Duane Arnold Energy
  Center, have not shown signs of degradation.
Related Communications from GENE and the NRC
GENE Rapid Information Communication Services Information Letter (RICSIL)

  No. 069, Rev. 1, issued May 11, 1994, informed licensees that diaphragm kits
  or valve assemblies assembled after early 1989 may have a shorter service life
  than the 3 to 4 year service life recommended in earlier GENE communications.
GENE Services Information Letter (SIL) No. 575, issued October 27, 1993, discussed
  potential causes of slow control rod start of motion times. The SIL indicated
  that the combined shelf and service life of Buna-N components is 7 years and
  that the installed service life should be limited to approximately 4 years as
  recommended in earlier GENE communications.
NRC Generic Letter 91-15, "Operating Experience Feedback Report, Solenoid-
  Operated Valve Problems at U.S. Reactors," issued September 23, 1991, informed
  addressees of an Office for Analysis and Evaluation of Operational Data (AEOD)
  case study report, NUREG-1275, Volume 6, "Operating Experience Feedback
  Report - Solenoid-Operated Valve Problems," and alerted the industry to
  the potential for common-mode failure of solenoid-operated valves. Although
  degradation of Buna-N diaphragms was not specifically addressed, degradation
  of elastomeric components from aging and thermal factors was discussed.
NRC Information Notice 86-57, "Operating Problems Valves at Nuclear Power
  Plants," issued July 11, 1986, discussed several causes of solenoid-operated
  valve failures, including Buna-N diaphragm degradation.
NRC Information Notice 86-109, "Diaphragm Failure in Scram Outlet Valve
  Causing Rod Insertion," discusses failure of a Buna-N diaphragm in a scram
  outlet valve because of age related degradation. The notice also discussed lack
  of an adequate program to monitor shelf life and service life of these diaphragms
  and similar components susceptible to age-related degradation.
NRC Bulletin 78-14, "Deterioration of Buna-N Components in ASCO Solenoids,"
  issued December 19, 1978, described an event at one licensee facility where
  a control rod was slow to scram because small pieces of the Buna-N disc in the
  scram solenoid pilot valve had wedged between the core assembly and the valve
  body, preventing movement of the core assembly. The NRC bulletin referenced
  SIL No. 128.
GENE SIL No. 128, Revision 1, issued January 30, 1976, and its supplement,
  SIL No. 128, Revision 1, Supplement 1, Revision 2, issued March 2, 1984, addressed
  deterioration of Buna-N components in scram solenoid pilot valves and recommended
  that these components be replaced at periodic intervals and that the diaphragms
  be replaced after 3 to 4 years of service. In addition, the SIL recommended
  that the work for any one outage be scheduled so that pilot valves are rebuilt
  in a distributed checkerboard pattern.
This information notice requires no specific action or written response. If
  you have any questions about the information in this notice, please contact
  one of the technical contacts listed below or the appropriate Office of Nuclear
  Reactor Regulation (NRR) project manager.
 /S/'D BY BKGRIMES


Brian K. Grimes, Director
  Division of Project Support
  Office of Nuclear Reactor Regulation

  Technical contacts: Kamalakar Naidu, NRR Joseph Petrosino, NRR
  (301) 504-2980 (301) 504-2979

Harold Ornstein, AEOD David Skeen, NRR
  (301) 415-7574 (301) 504-1174

Attachments:

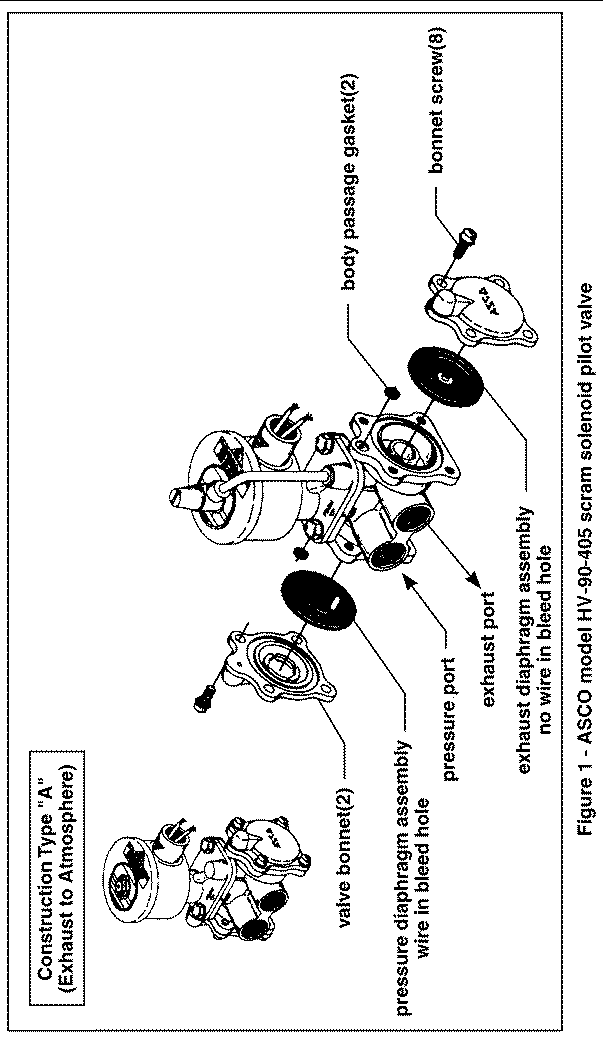

  1. Figure 1 - ASCO Model HVA-90-405 Scram Solenoid Pilot Valve
